收藏产品 产品详情
分子别名（Synonym）
GPC3,OCI5,Glypican-3,GTR2-2,MXR7,DGSX,SDYS ,SGB,SGBS,SGBS1
表达区间及表达系统（Source）
Biotinylated Human Glypican 3, His,Avitag, premium grade (GP3-H82E5) is expressed from human 293 cells (HEK293). It contains AA Gln 25 - His 559 (Accession # P51654-1).
Predicted N-terminus: Gln 25 & Ser 359
It is produced under our rigorous quality control system that incorporates a comprehensive set of tests including sterility and endotoxin tests. Product performance is carefully validated and tested for compatibility for cell culture use or any other applications in the early preclinical stage. When ready to transition into later clinical phases, we also offer a custom GMP protein service that tailors to your needs. We will work with you to customize and develop a GMP-grade product in accordance with your requests that also meets the requirements for raw and ancillary materials use in cell manufacturing of cell-based therapies.
Request for sequence蛋白结构（Molecular Characterization）

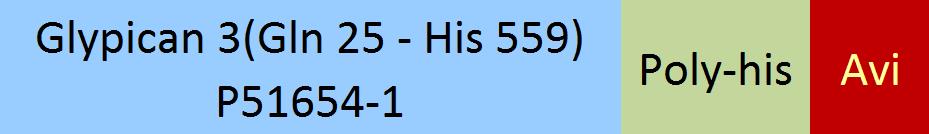

This protein carries a polyhistidine tag at the C-terminus, followed by an Avi tag (Avitag™).
This protein contains a furin-like convertase cleavage site, 355-RQYR-358, and will be partially processed into N and C-terminal fragment with calculated MW of 38.1 kDa and 26.4 kDa respectively. The protein migrates as 33 kDa, 43 kDa and 70-85 kDa when calibrated against Star Ribbon Pre-stained Protein Marker under reducing (R) condition (SDS-PAGE) due to glycosylation.
偶联（Conjugate）
Biotin
标记（Labeling）
Biotinylation of this product is performed using Avitag™ technology. Briefly, the single lysine residue in the Avitag is enzymatically labeled with biotin.
内毒素（Endotoxin）
Less than 0.01 EU per μg by the LAL method.
无菌（Sterility）
Negative
支原体（Mycoplasma）
Negative.
纯度（Purity）
90% as determined by SDS-PAGE.
90% as determined by SEC-MALS.
制剂（Formulation）
Lyophilized from 0.22 μm filtered solution in PBS, pH7.4 with trehalose as protectant.
Contact us for customized product form or formulation.
重构方法（Reconstitution）
Please see Certificate of Analysis for specific instructions.
For best performance, we strongly recommend you to follow the reconstitution protocol provided in the CoA.
存储（Storage）
For long term storage, the product should be stored at lyophilized state at -20°C or lower.
Please avoid repeated freeze-thaw cycles.
This product is stable after storage at:
- -20°C to -70°C for 12 months in lyophilized state;
- -70°C for 3 months under sterile conditions after reconstitution.
质量管理控制体系（QMS）
产品展示
电泳（SDS-PAGE）

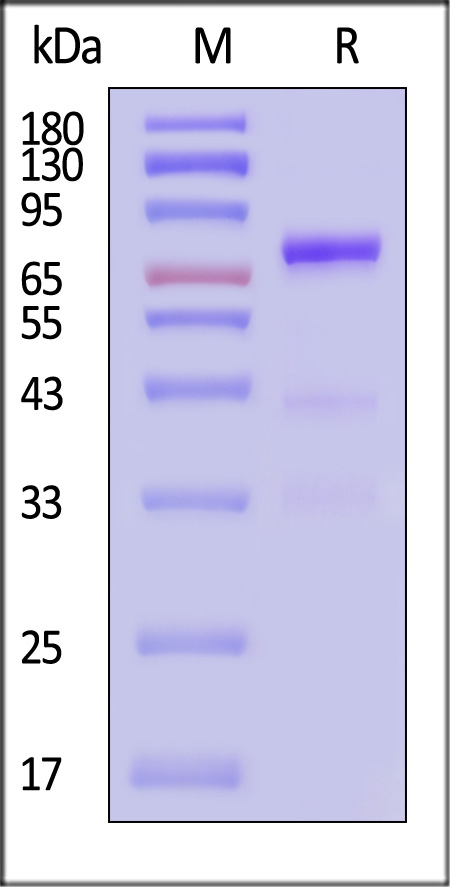

Biotinylated Human Glypican 3, His,Avitag, premium grade on SDS-PAGE under reducing (R) condition. The gel was stained with Coomassie Blue. The purity of the protein is greater than 90%undefined.
SEC-MALS

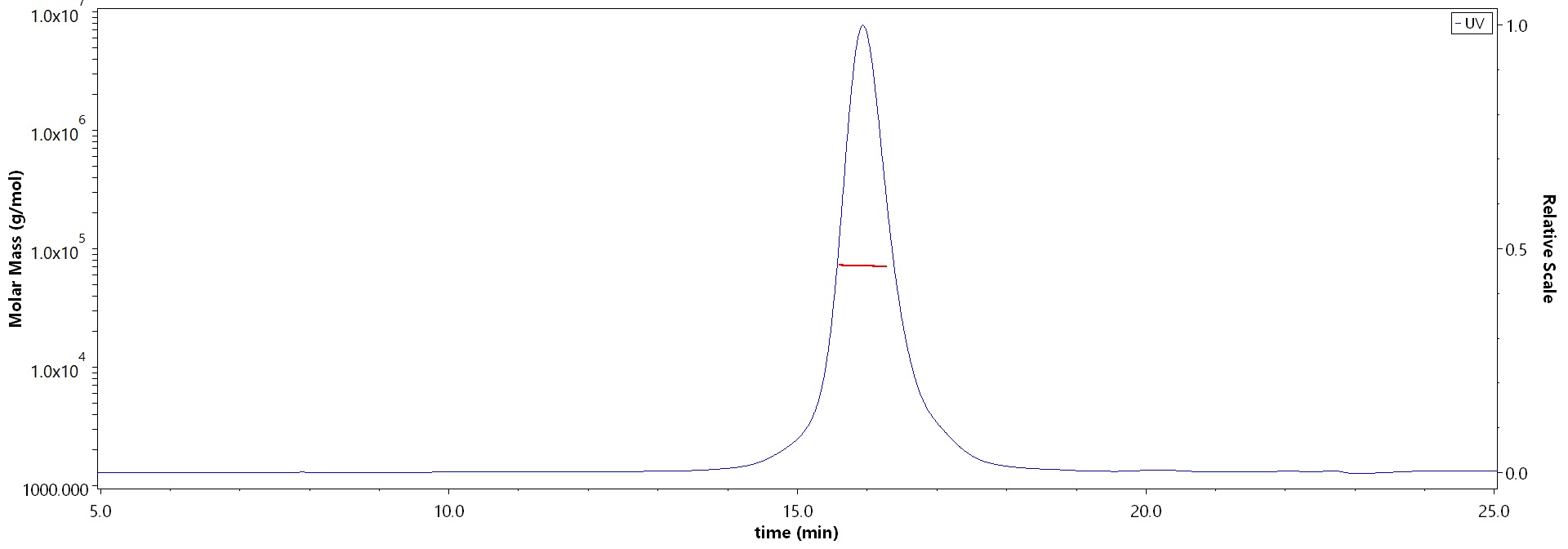

The purity of Biotinylated Human Glypican 3, His,Avitag, premium grade (Cat. No. GP3-H82E5) is more than 90% and the molecular weight of this protein is around 65-75 kDa verified by SEC-MALS.
Report
活性（Bioactivity）-FACS

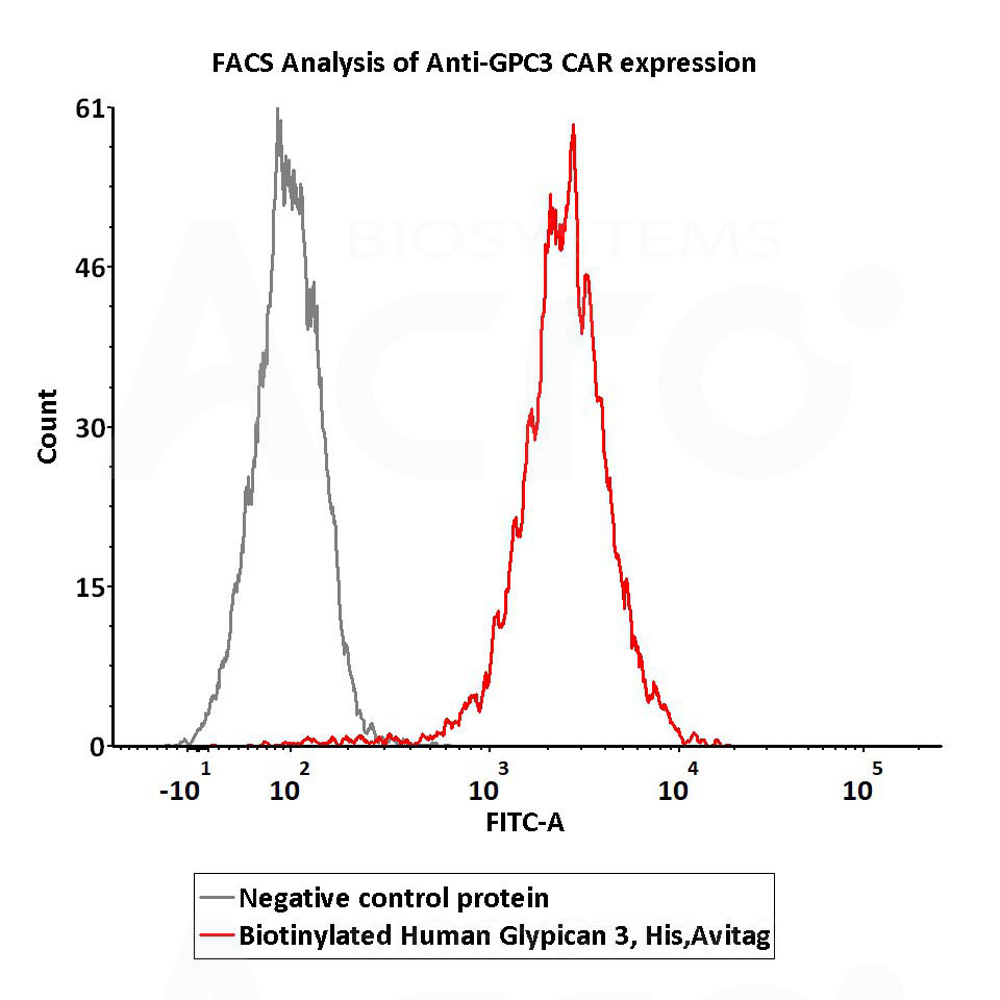

2e5 of anti-GPC3 CAR-293 cells were stained with 100 μL of 10 μg/mL of Biotinylated Human Glypican 3, His,Avitag, premium grade (Cat. No. GP3-H82E5) and negative control protein respectively, washed and then followed by PE-SA and analyzed with FACS (Routinely tested).
Protocol
活性（Bioactivity）-ELISA

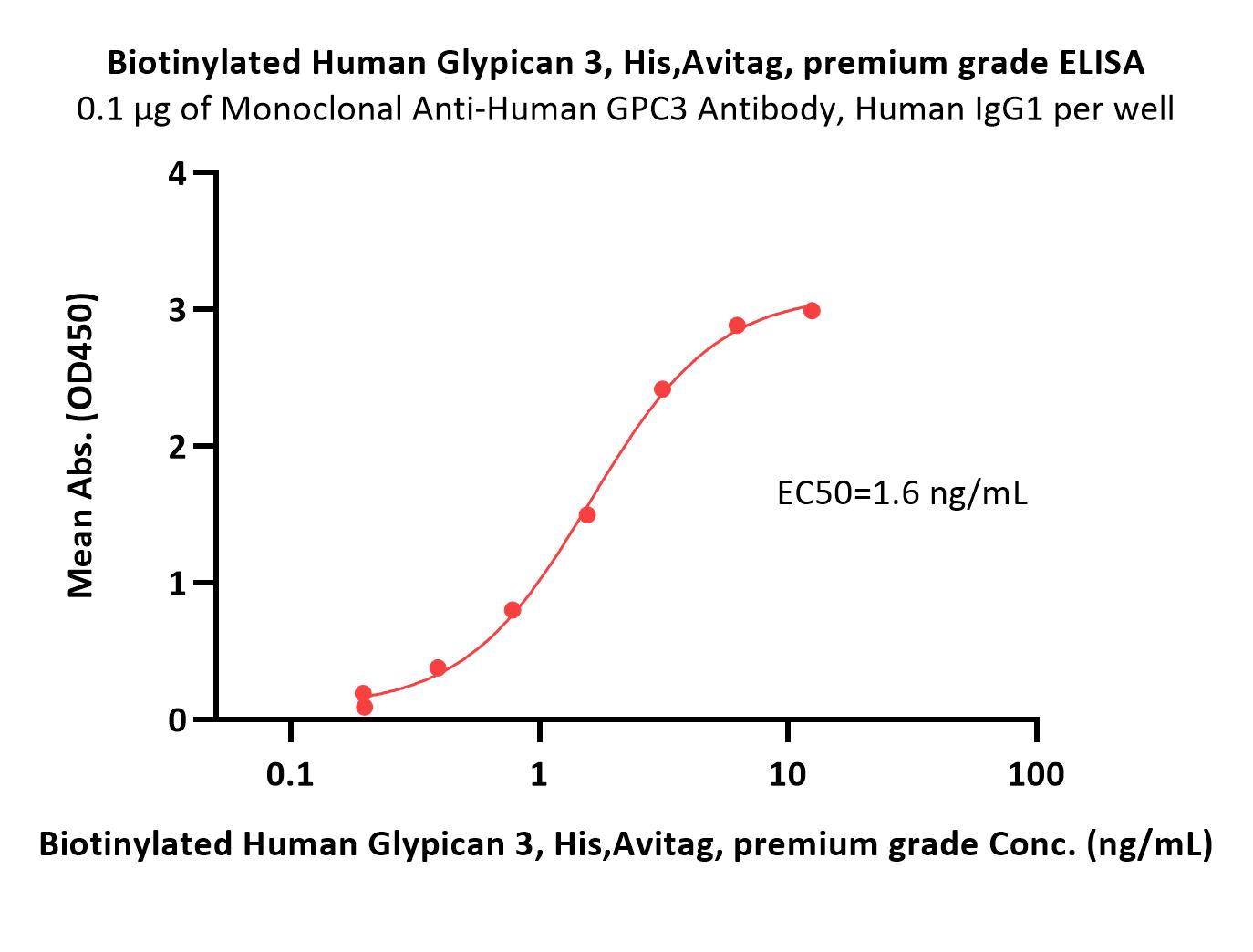

Immobilized Monoclonal Anti-Human GPC3 Antibody, Human IgG1 at 1 μg/mL (100 μL/well) can bind Biotinylated Human Glypican 3, His,Avitag, premium grade (Cat. No. GP3-H82E5) with a linear range of 0.2-3 ng/mL (QC tested).
Protocol
