分子别名（Synonym）
PD-L1,CD274,B7-H1,PDCD1L1,PDCD1LG1
表达区间及表达系统（Source）
Biotinylated Cynomolgus / Rhesus macaque PD-L1, His,Avitag (PDL-C82E8) is expressed from human 293 cells (HEK293). It contains AA Phe 19 - Arg 238 (Accession # G7PSE7-1).
Predicted N-terminus: Phe 19
Request for sequence蛋白结构（Molecular Characterization）
This protein carries a polyhistidine tag at the C-terminus, followed by an Avi tag (Avitag™).
The protein has a calculated MW of 28.8 kDa. The protein migrates as 32-40 kDa under reducing (R) condition (SDS-PAGE) due to glycosylation.
偶联（Conjugate）
Biotin
标记（Labeling）
Biotinylation of this product is performed using Avitag™ technology. Briefly, the single lysine residue in the Avitag is enzymatically labeled with biotin.
内毒素（Endotoxin）
Less than 1.0 EU per μg by the LAL method.
纯度（Purity）
90% as determined by SDS-PAGE.
90% as determined by SEC-MALS.
制剂（Formulation）
Lyophilized from 0.22 μm filtered solution in PBS, pH7.4 with trehalose as protectant.
Contact us for customized product form or formulation.
重构方法（Reconstitution）
Please see Certificate of Analysis for specific instructions.
For best performance, we strongly recommend you to follow the reconstitution protocol provided in the CoA.
存储（Storage）
For long term storage, the product should be stored at lyophilized state at -20°C or lower.
Please avoid repeated freeze-thaw cycles.
This product is stable after storage at:
- -20°C to -70°C for 12 months in lyophilized state;
- -70°C for 3 months under sterile conditions after reconstitution.
质量管理控制体系（QMS）
产品展示
电泳（SDS-PAGE）
Biotinylated Cynomolgus / Rhesus macaque PD-L1, His,Avitag on SDS-PAGE under reducing (R) condition. The gel was stained with Coomassie Blue. The purity of the protein is greater than 90%.
SEC-MALS
The purity of Biotinylated Cynomolgus / Rhesus macaque PD-L1, His,Avitag (Cat. No. PDL-C82E8) is more than 90% and the molecular weight of this protein is around 31-47 kDa verified by SEC-MALS.
Report
活性（Bioactivity）-ELISA
Immobilized Biotinylated Cynomolgus / Rhesus macaque PD-L1, His,Avitag (Cat. No. PDL-C82E8) at 1 μg/mL (100 μL/well) on streptavidin (Cat. No. STN-N5116) precoated (0.5 μg/well) plate can bind Human PD-1, Fc Tag, low endotoxin (Cat. No. PD1-H5257) with a linear range of 0.3-2 ng/mL (QC tested).
Protocol
Immobilized Biotinylated Cynomolgus / Rhesus macaque PD-L1, His,Avitag (Cat. No. PDL-C82E8) at 1 μg/mL (100 μL/well) on streptavidin (Cat. No. STN-N5116) precoated (0.5 μg/well) plate can bind Cynomolgus PD-1, Fc Tag (Cat. No. PD1-C5254) with a linear range of 0.3-5 ng/mL (Routinely tested).
Protocol
Immobilized Biotinylated Cynomolgus / Rhesus macaque PD-L1, His,Avitag (Cat. No. PDL-C82E8) at 1 μg/mL (100 μL/well) on streptavidin (Cat. No. STN-N5116) precoated (0.5 μg/well) plate can bind Anti-PD-L1 Neutralizing Antibody with a linear range of 0.1-3 ng/mL (Routinely tested).
Protocol
Immobilized Anti-PD-L1 Neutralizing Antibody at 1 μg/mL (100 μL/well) can bind Biotinylated Cynomolgus / Rhesus macaque PD-L1, His,Avitag (Cat. No. PDL-C82E8) with a linear range of 0.2-10 ng/mL (Routinely tested).
Protocol
活性（Bioactivity）-SPR

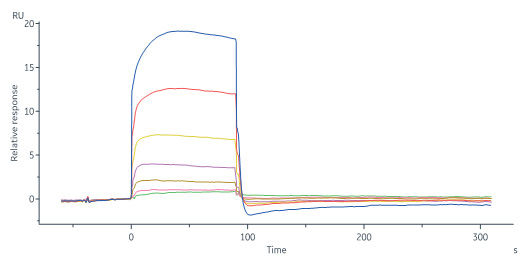

Cynomolgus PD-1, Fc Tag (Cat. No. PD1-C5254) captured on CM5 chip via Anti-human IgG Fc antibodies surface can bind Biotinylated Cynomolgus / Rhesus macaque PD-L1, His,Avitag (Cat. No. PDL-C82E8) with an affinity constant of 6.59 μM as determined in a SPR assay (Biacore 8K) (Routinely tested).
Protocol
