分子别名（Synonym）
PD-L1,CD274,B7-H1,PDCD1L1,PDCD1LG1
表达区间及表达系统（Source）
Biotinylated Human PD-L1, Fc,Avitag,His Tag (PD1-H82F3) is expressed from human 293 cells (HEK293). It contains AA Phe 19 - Arg 238 (Accession # NP_054862.1).
Predicted N-terminus: Phe 19
Request for sequence蛋白结构（Molecular Characterization）
This protein carries a human IgG1 Fc fragment at the C-terminus, followed by a polyhistidine tag. The Avi tag (Avitag™) is inserted in-between the Fc and his tags. The protein has a calculated MW of 54.0 kDa. The protein migrates as 65-80 kDa on a SDS-PAGE gel when calibrated against Star Ribbon Pre-stained Protein Marker under reducing (R) condition due to glycosylation.
偶联（Conjugate）
Biotin
标记（Labeling）
Biotinylation of this product is performed using Avitag™ technology. Briefly, the single lysine residue in the Avitag is enzymatically labeled with biotin.
内毒素（Endotoxin）
Less than 1.0 EU per μg by the LAL method.
纯度（Purity）
95% as determined by SDS-PAGE.
90% as determined by SEC-MALS.
制剂（Formulation）
Lyophilized from 0.22 μm filtered solution in Tris with Glycine, Arginine and NaCl, pH7.5 with trehalose as protectant.
Contact us for customized product form or formulation.
重构方法（Reconstitution）
Please see Certificate of Analysis for specific instructions.
For best performance, we strongly recommend you to follow the reconstitution protocol provided in the CoA.
存储（Storage）
For long term storage, the product should be stored at lyophilized state at -20°C or lower.
Please avoid repeated freeze-thaw cycles.
This product is stable after storage at:
- -20°C to -70°C for 12 months in lyophilized state;
- -70°C for 3 months under sterile conditions after reconstitution.
质量管理控制体系（QMS）
产品展示
电泳（SDS-PAGE）

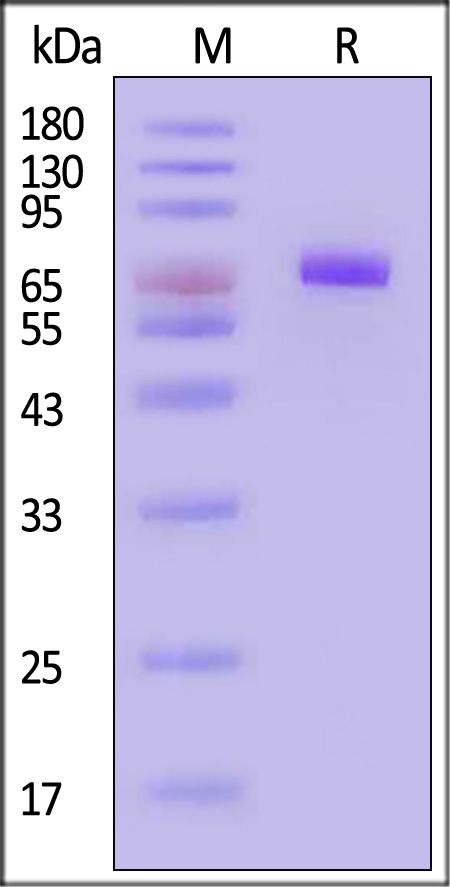

Biotinylated Human PD-L1, Fc,Avitag,His Tag on SDS-PAGE under reducing (R) condition. The gel was stained with Coomassie Blue. The purity of the protein is greater than 95%undefined.
SEC-MALS

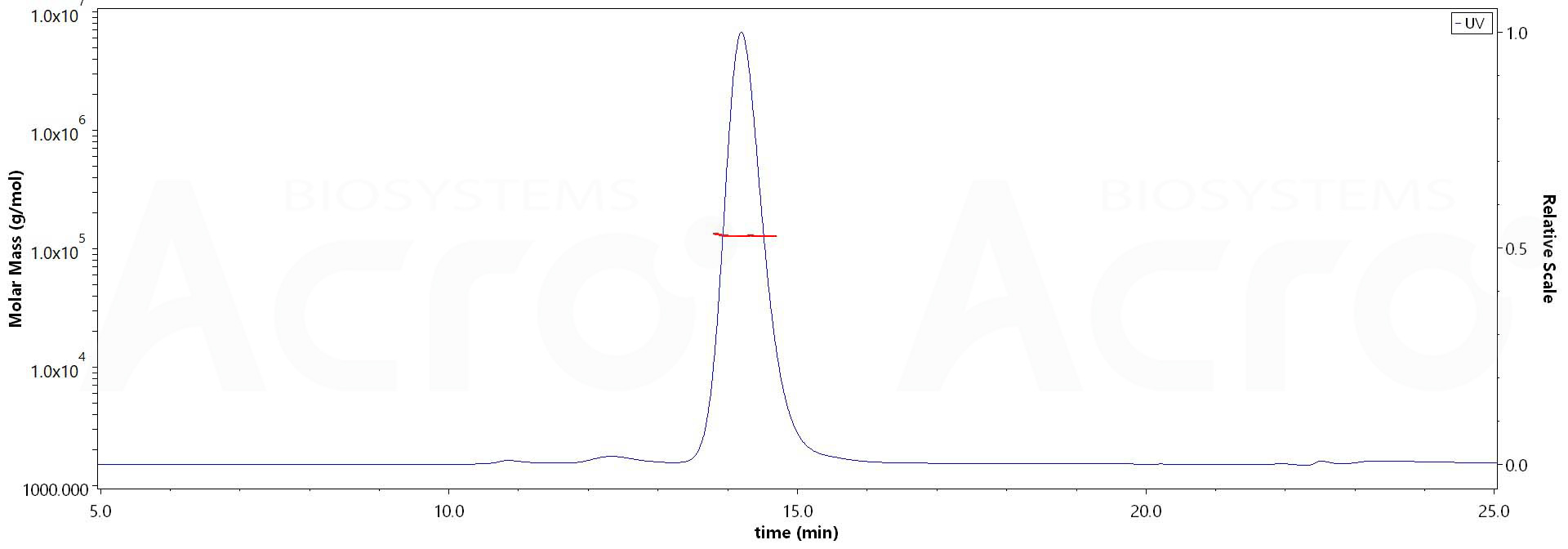

The purity of Biotinylated Human PD-L1, Fc,Avitag,His Tag (Cat. No. PD1-H82F3) is more than 90% and the molecular weight of this protein is around 120-135 kDa verified by SEC-MALS.
Report
活性（Bioactivity）-ELISA

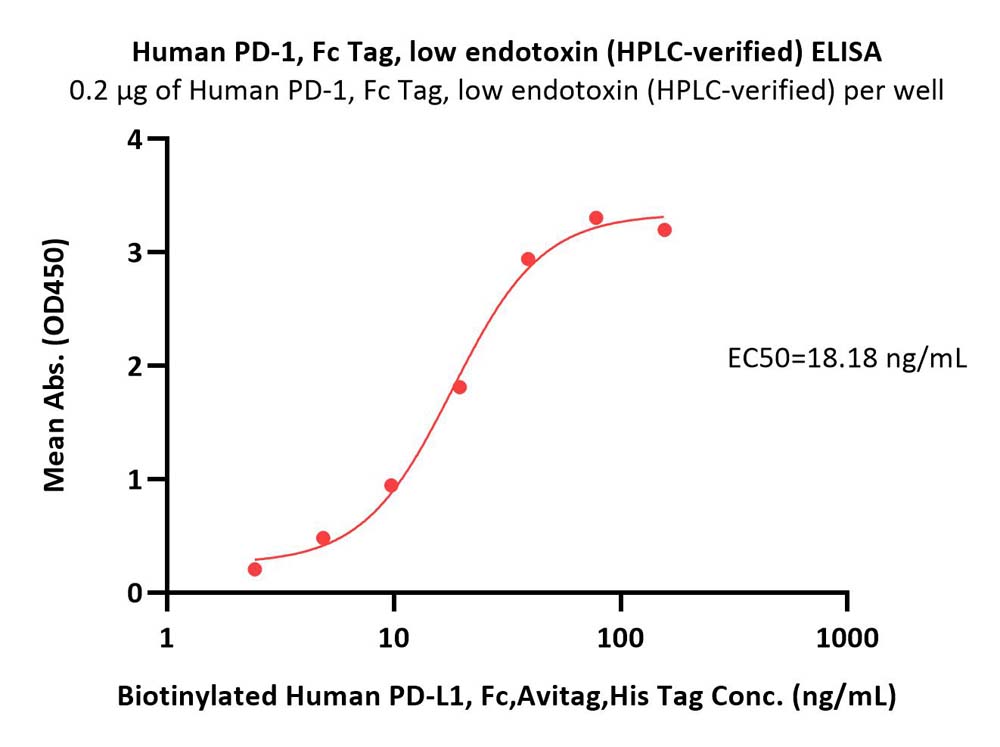

Immobilized Human PD-1, Fc Tag, low endotoxin (HPLC-verified) (Cat. No. PD1-H5257) at 2 μg/mL (100 μL/well) can bind Biotinylated Human PD-L1, Fc,Avitag,His Tag (Cat. No. PD1-H82F3) with a linear range of 2-39 ng/mL (QC tested).
Protocol

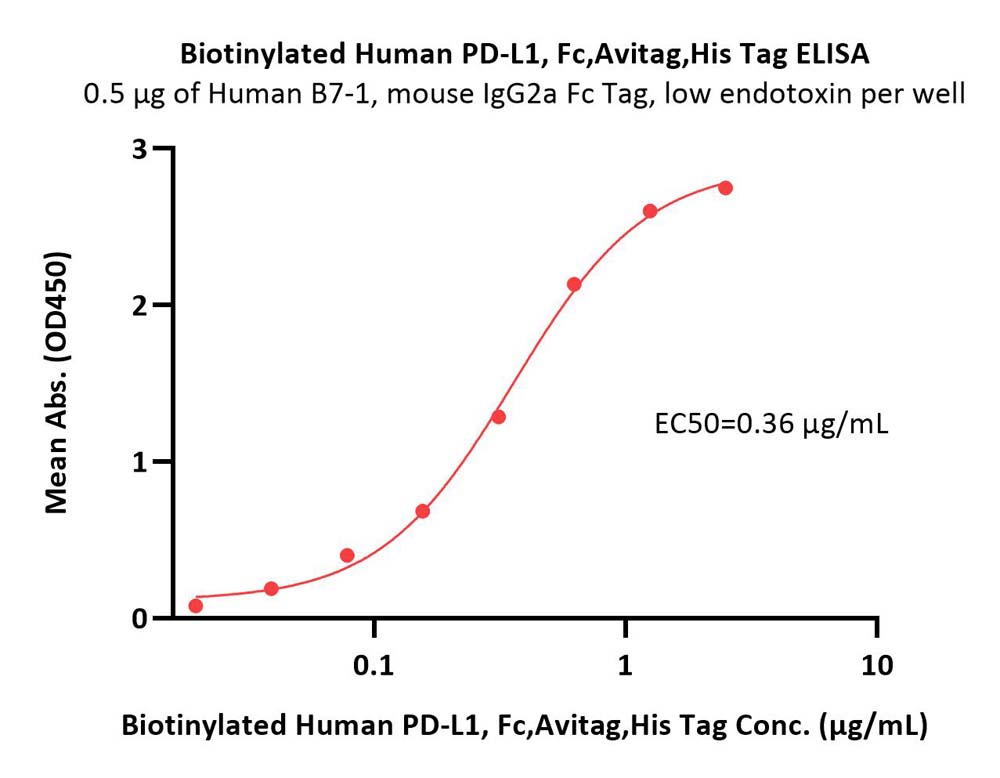

Immobilized Human B7-1, mouse IgG2a Fc Tag, low endotoxin (Cat. No. B71-H52A4) at 5 μg/mL (100 μL/well) can bind Biotinylated Human PD-L1, Fc,Avitag,His Tag (Cat. No. PD1-H82F3) with a linear range of 0.02-0.625 μg/mL (Routinely tested).
Protocol

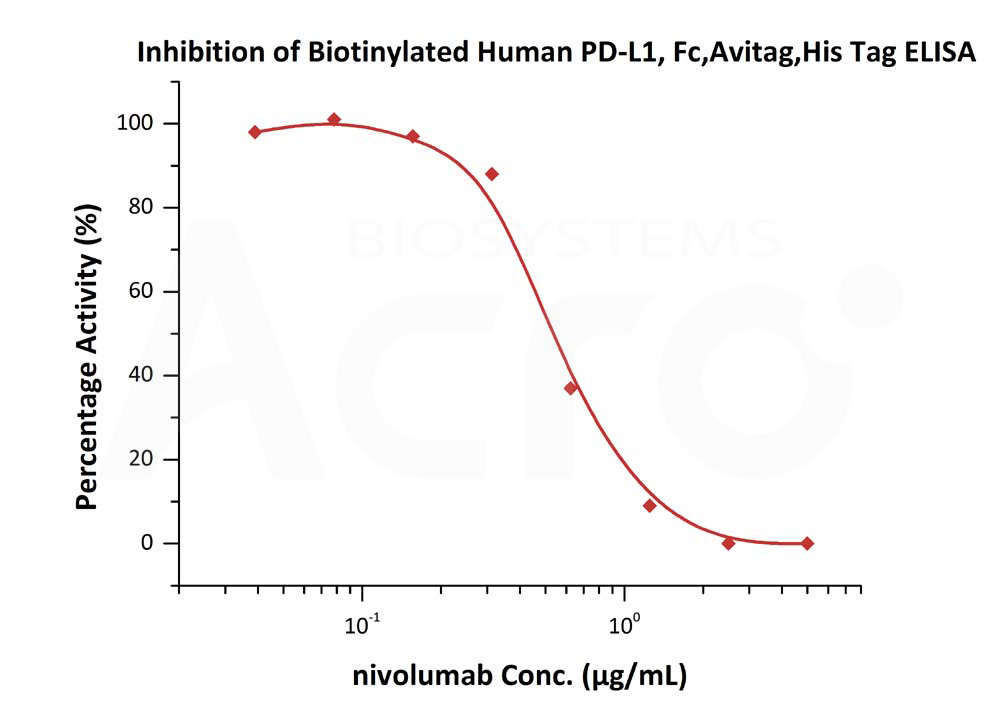

Serial dilutions of nivolumab were added into Human PD-1, Fc Tag, low endotoxin (HPLC-verified) (Cat. No. PD1-H5257): Biotinylated Human PD-L1, Fc,Avitag,His Tag (Cat. No. PD1-H82F3) binding reactions. The half maximal inhibitory concentration (IC50) is 0.5381 μg/mL (Routinely tested).
Protocol
活性（Bioactivity）-FACS

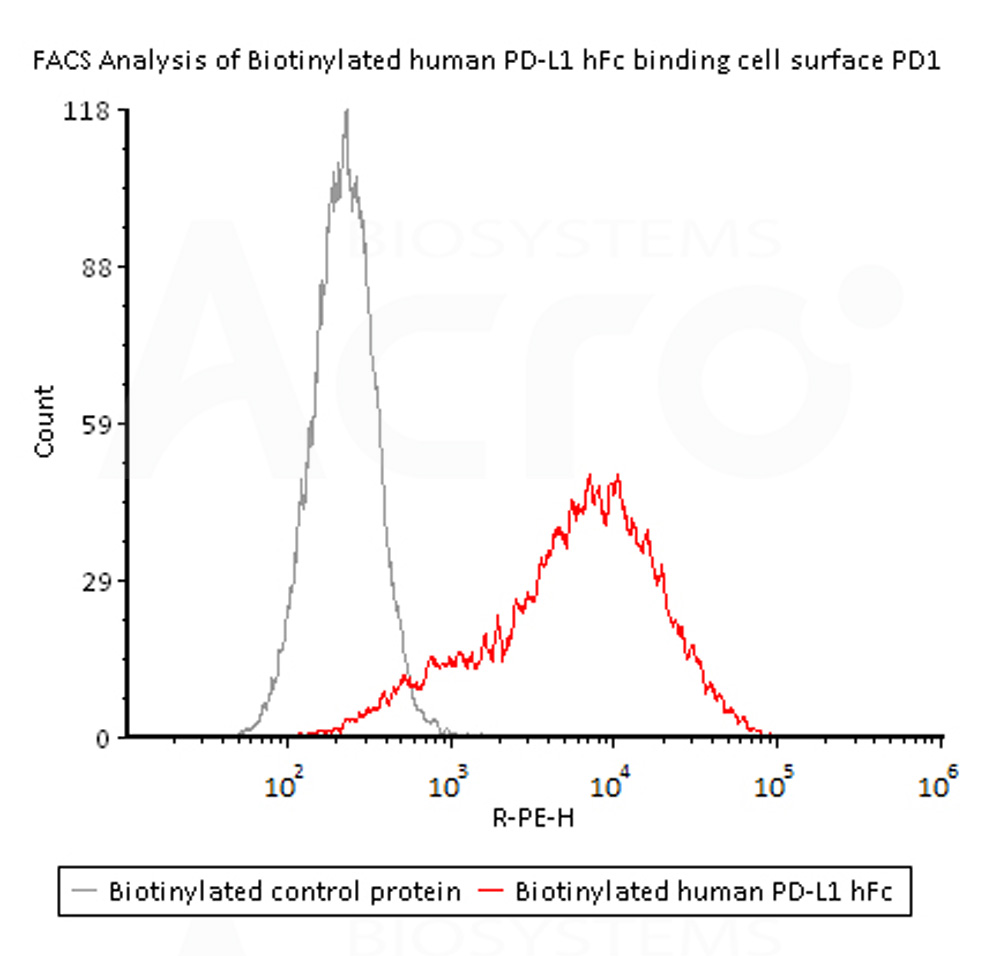

Flow Cytometry assay shows that Biotinylated Human PD-L1, Fc,Avitag,His Tag (Cat.No. PD1-H82F3) can bind to 293 cell overexpressing human PD-1. The concentration of PD-L1 used is 1 μg/mL (Routinely tested).
Protocol

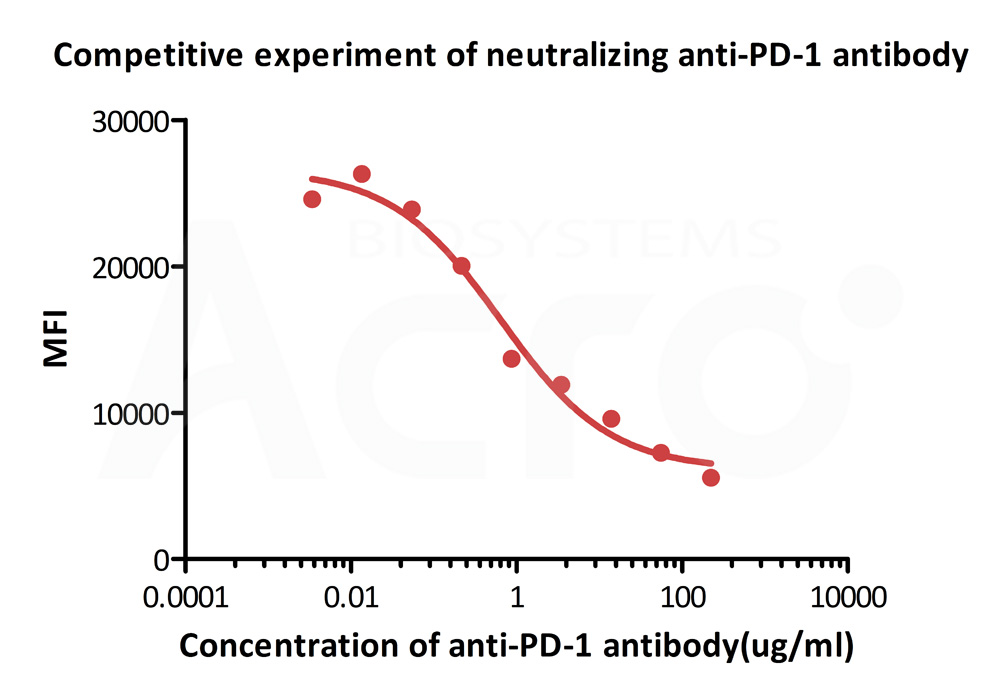

FACS analysis shows that the binding of Biotinylated Human PD-L1, Fc,Avitag,His Tag (Cat. No. PD1-H82F3) to 293 overexpressing PD-1 was inhibited by increasing concentration of neutralizing anti-PD-1 antibody. The concentration of PD-L1 used is 2 μg/mL. The IC50 is 0.64 μg/mL (Routinely tested).
Protocol
活性（Bioactivity）-CELL BASE

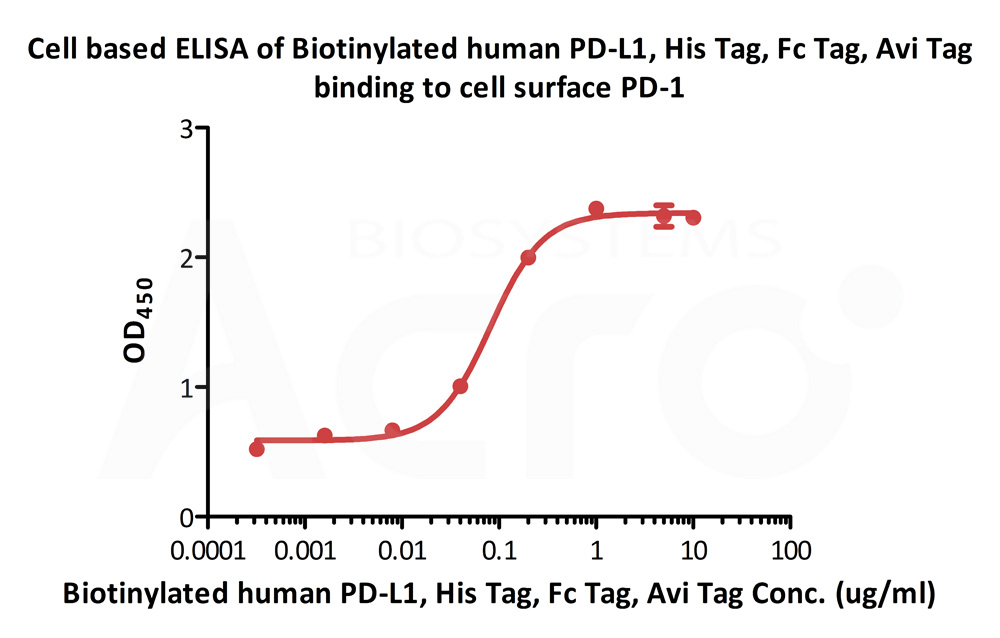

Immobilized cell surface PD-1 (5x104 of cells per well) can bind Biotinylated Human PD-L1, Fc,Avitag,His Tag (Cat. No. PD1-H82F3) with an EC50 of 0.082 μg/mL (Routinely tested).
Protocol
